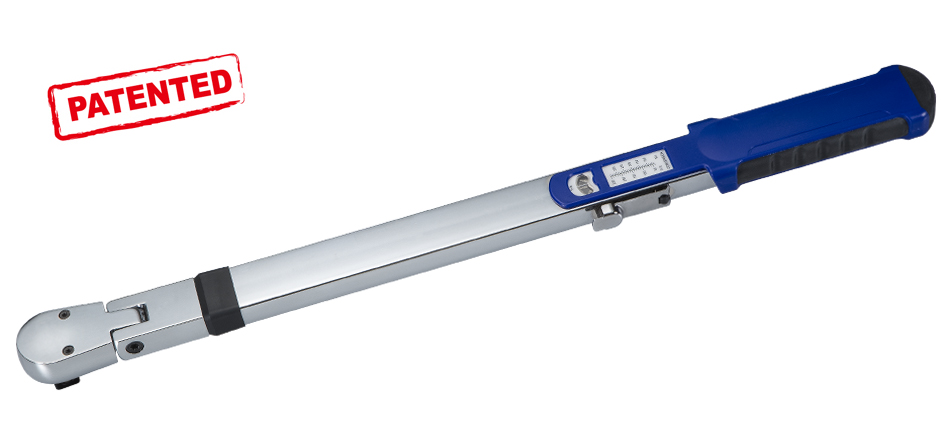

Flexible Head Split-Beam Torque Wrench
Torque of tolerance: unflexed +-4%; flexed +-4%~+-10%.

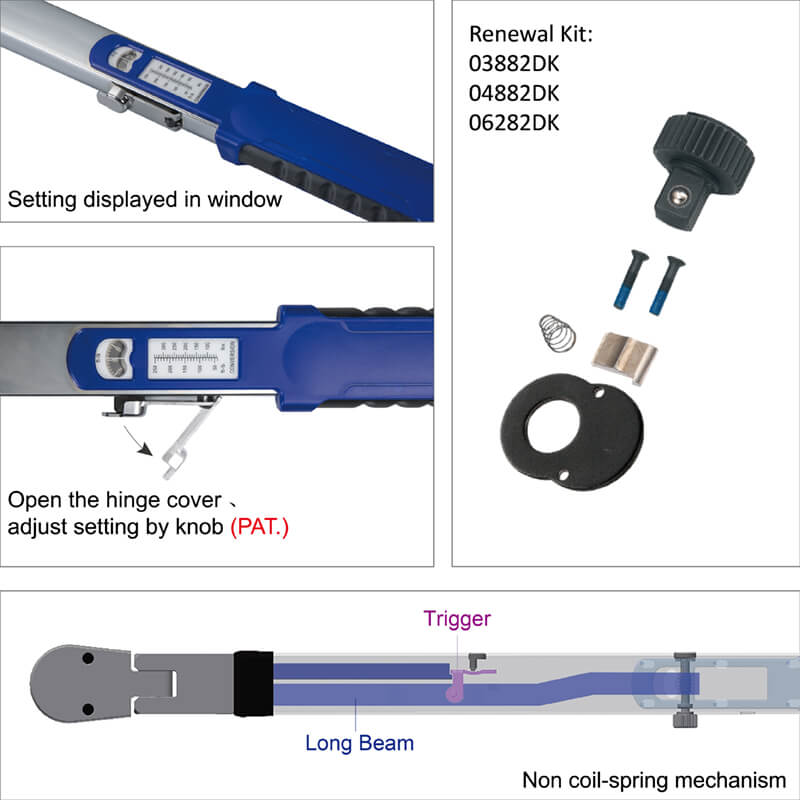

Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
Knob-type torque adjustment is faster and more energy-efficient.
Toothed hinge cover contains the lock function, which can prevent setting from being changed accidentally.
Torque setting can be easily read through the window scale.
Conversion table to N.m displayed on the handle.
TPR cushion handle provides comfort, easy control and oil-resistance.
Torque measurement in a clockwise direction only with 15 degree flex. head; but 3/4" with detachable fixed ratchet applied to both clockwise and counterclockwise directions.
Loud click sound strong impulse when required torque is reached.
Quality meets DIN ISO 6789 & ASME B107.300-2010.
