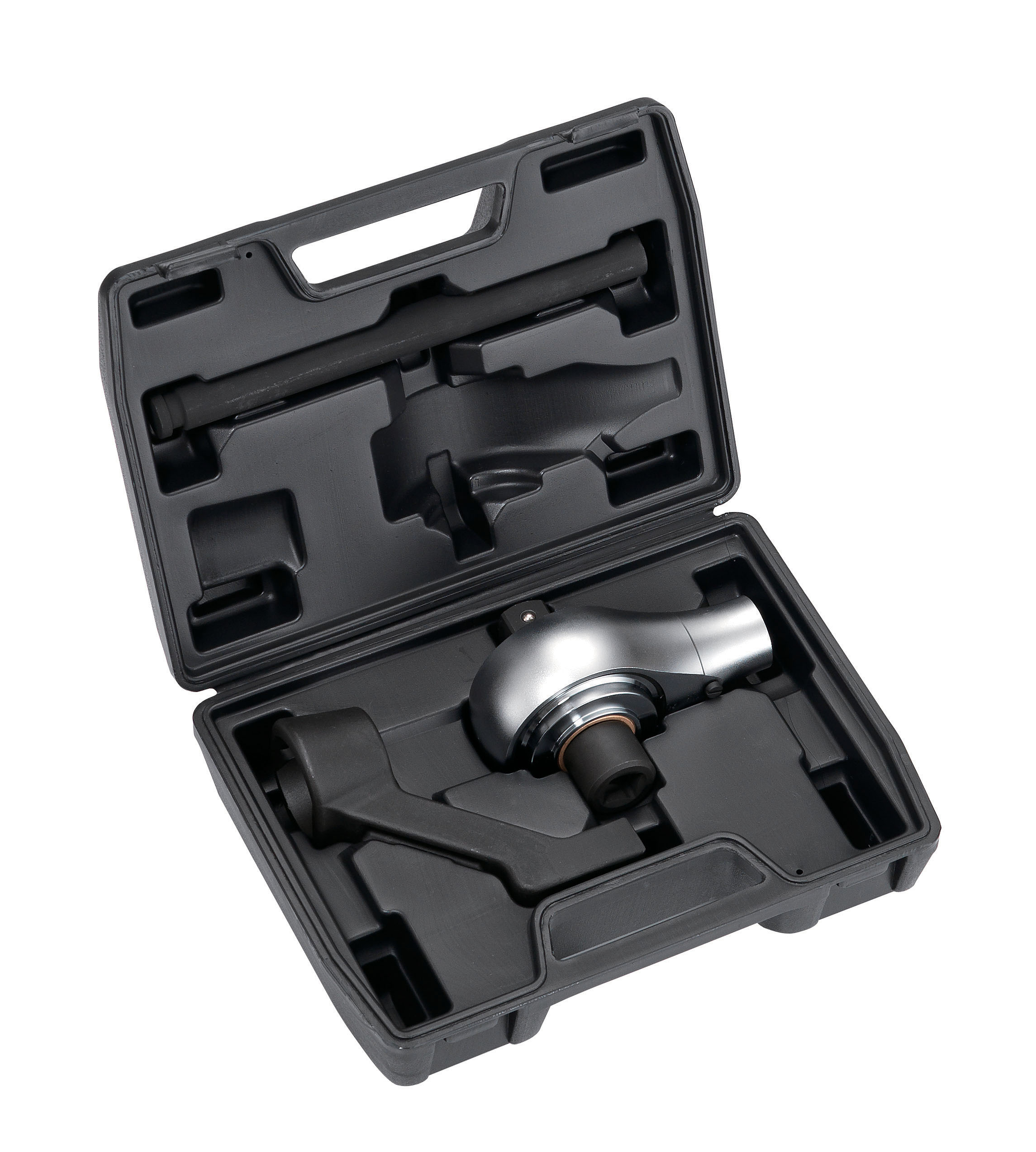

Torque multiplier 1500 ft/lb to 2,700 ft/lb
This series manual torque multiplier is ideal for applications where air and electricity aren't easily accessible. The gearing design allows for a high torque output with minimal input. Commonly used in petrochemical, power generation, transportation, shipping, and maintenance industries.
Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.
(a)Planetary gear carrier device brings high transmission efficiency and load capacity.
(b)All gears rotate on needle roller bearings throughout the operating process.
Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.
Add to inquiry
Input end: Chromium-molybdenum alloy steel brings better strength and life cycle.
Output end: Chromium-molybdenum alloy steel brings better strength and life cycle.
Main body: Electroplating Finished good for anti-corrosion and anti-abrasion.
(a)Planetary gear carrier device brings high transmission efficiency and load capacity.
(b)All gears rotate on needle roller bearings throughout the operating process.
Reaction arm: Each tool is supplied with 2 reaction bars subject to the working environment.
- Supplied with 2 reaction bars
- Multiplication accuracy ±5%.
- Precision tightening and loosening of all heavy duty fastening connections
- For operation in combination with a torque wrench
- Torque Multiplication Ratio - low energy input with high torque output
- Compact design allows for operation in space-restricted applications
- CLTW-428 Models feature an anti-backlash mechanism for safety
Ranges
| Model | Output Nm | Output lb-ft | Input Drive | Output Drive | Ratio |
|---|---|---|---|---|---|
| CLTW-416 | 1500 | 1100 | 1/2" | 3/4" | 5:1 |
| CLTW-418 | 1500 | 1100 | 1/2" | 1" | 5:1 |
| CLTW-618 | 2700 | 2000 | 3/4" | 1" | 5:1 |
| CLTW-428-01 | 3000 | 2200 | 1/2" | 1" | 15.5:1 |
| CLTW-428-02 | 4500 | 3300 | 1/2" | 1" | 26:1 |
